Description
Cross Reference
Name Part Number Notes
Hoosier Tank HT9506 Air Tank 1488 Cubic in Vol 9.500in Dia
Tectran 11303 Air Tank 1488 Cubic in Vol 9.500in Dia
Tectran 2001L Air Tank 1488 Cubic in Vol 9.500in Diak
Select a vehicle to find exact fit parts

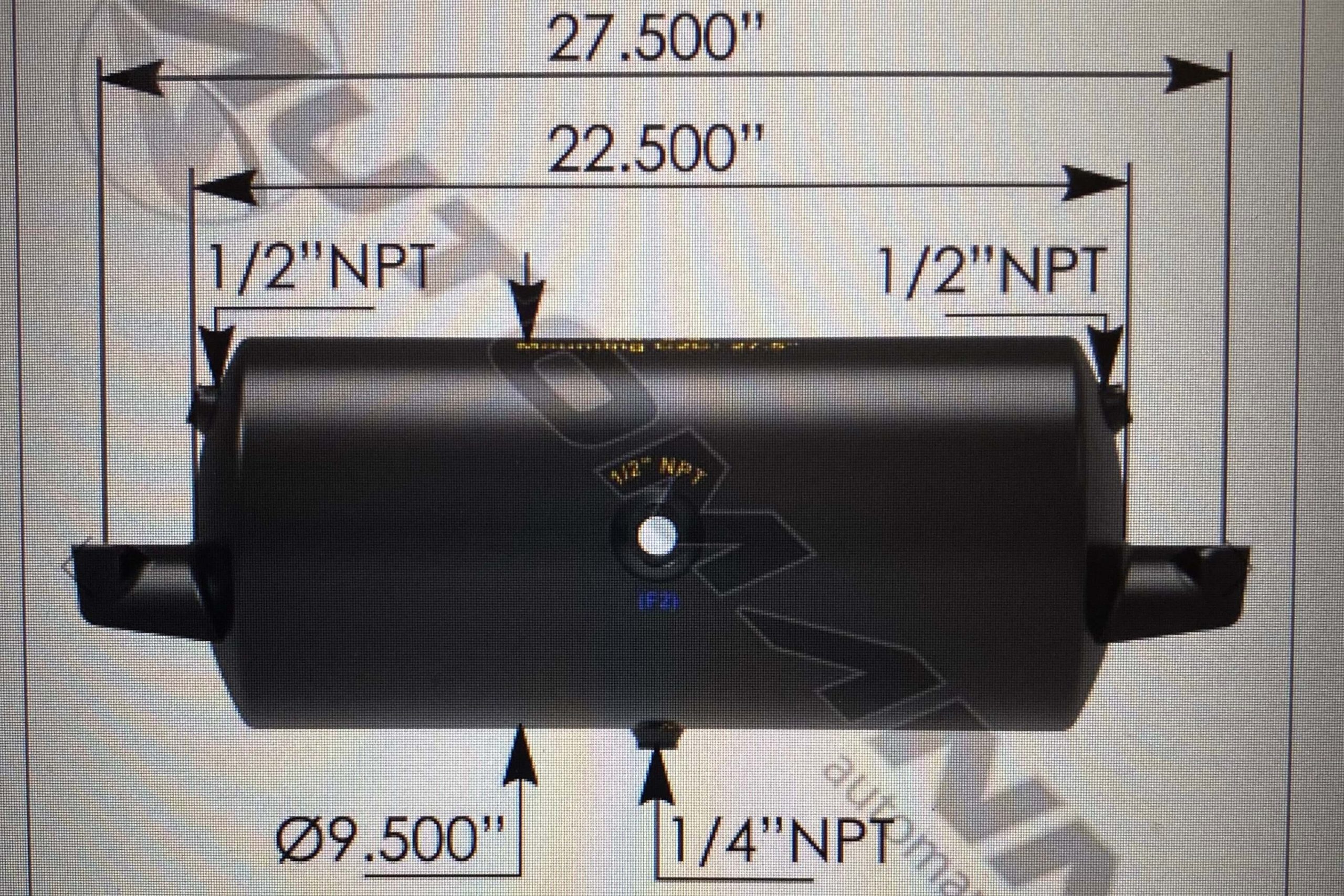

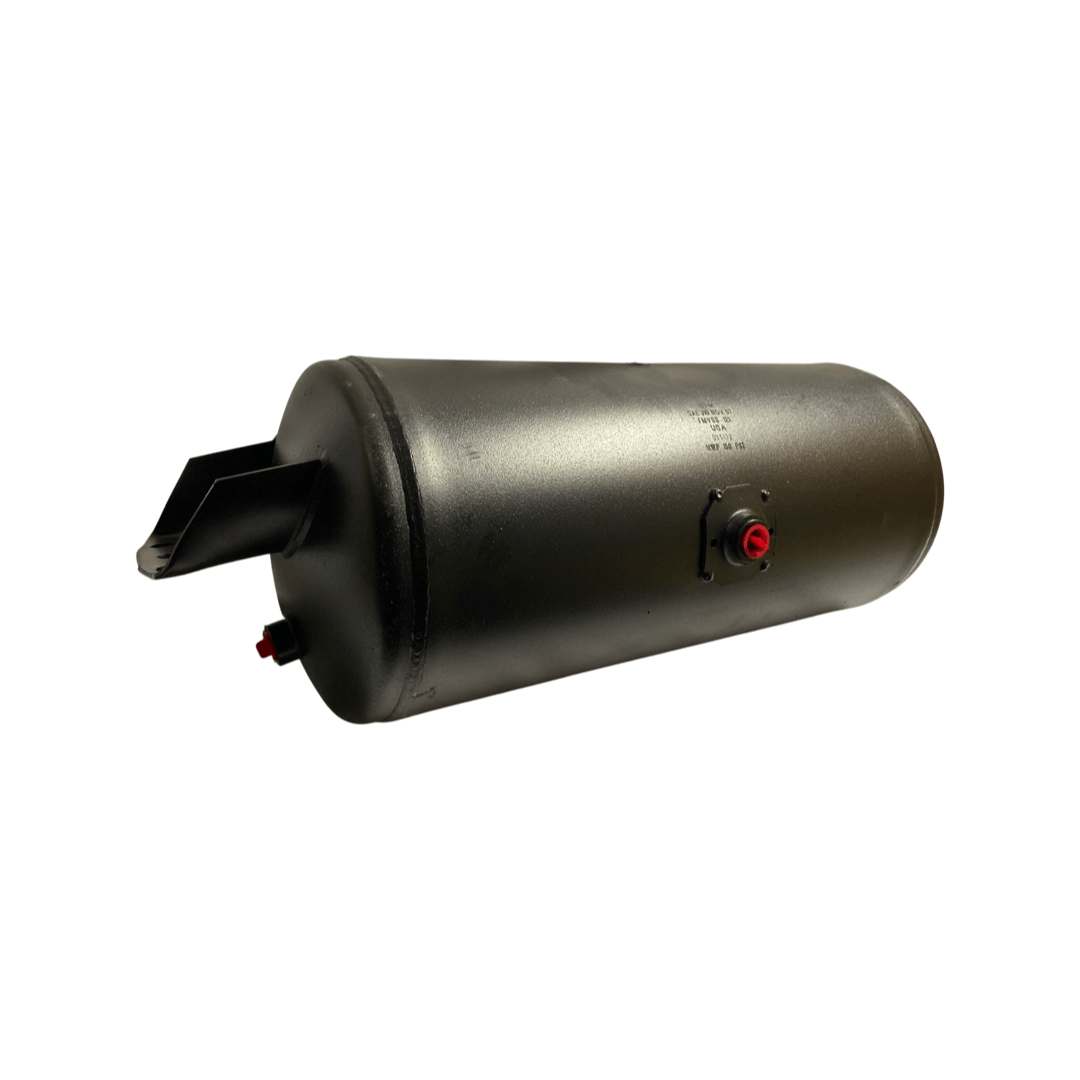

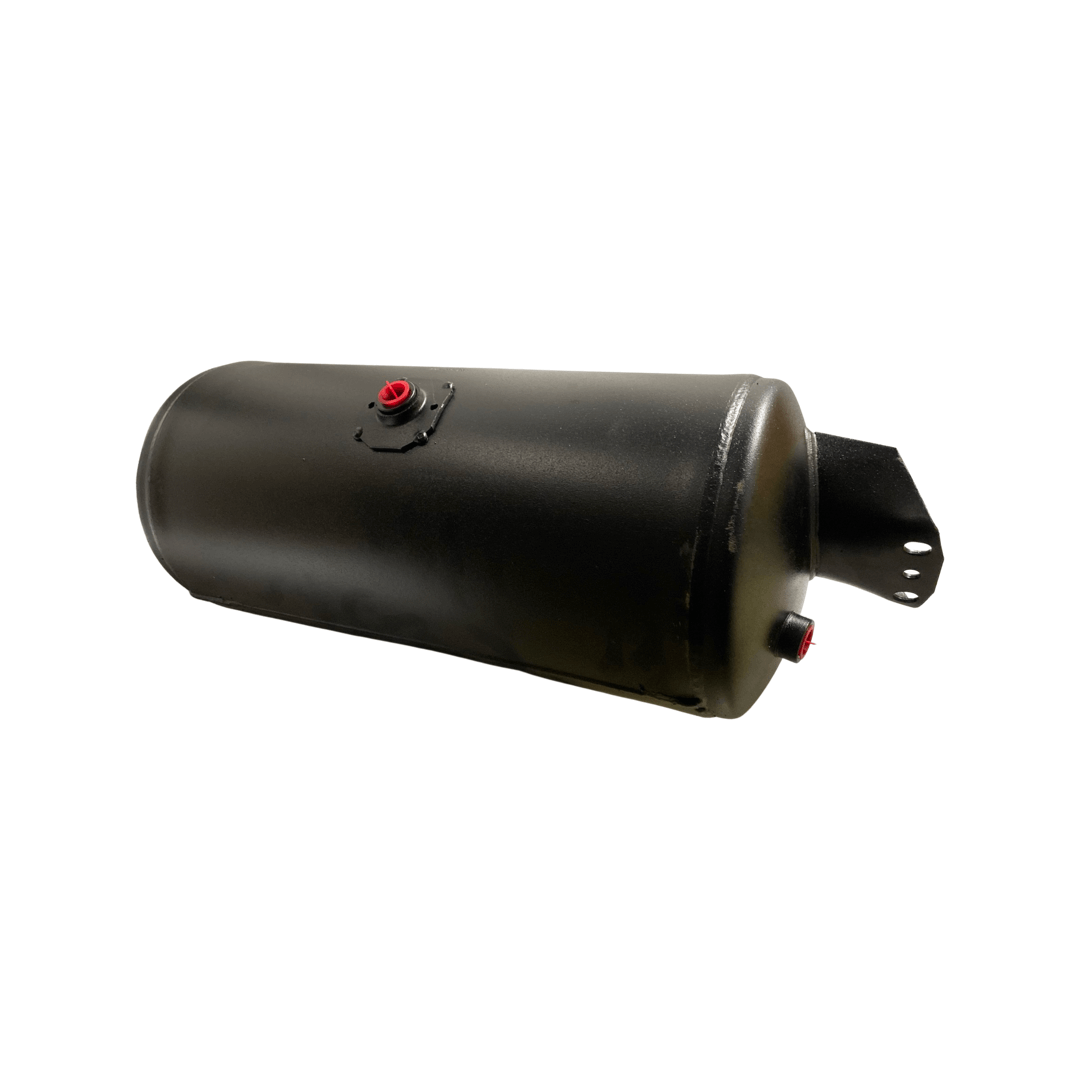

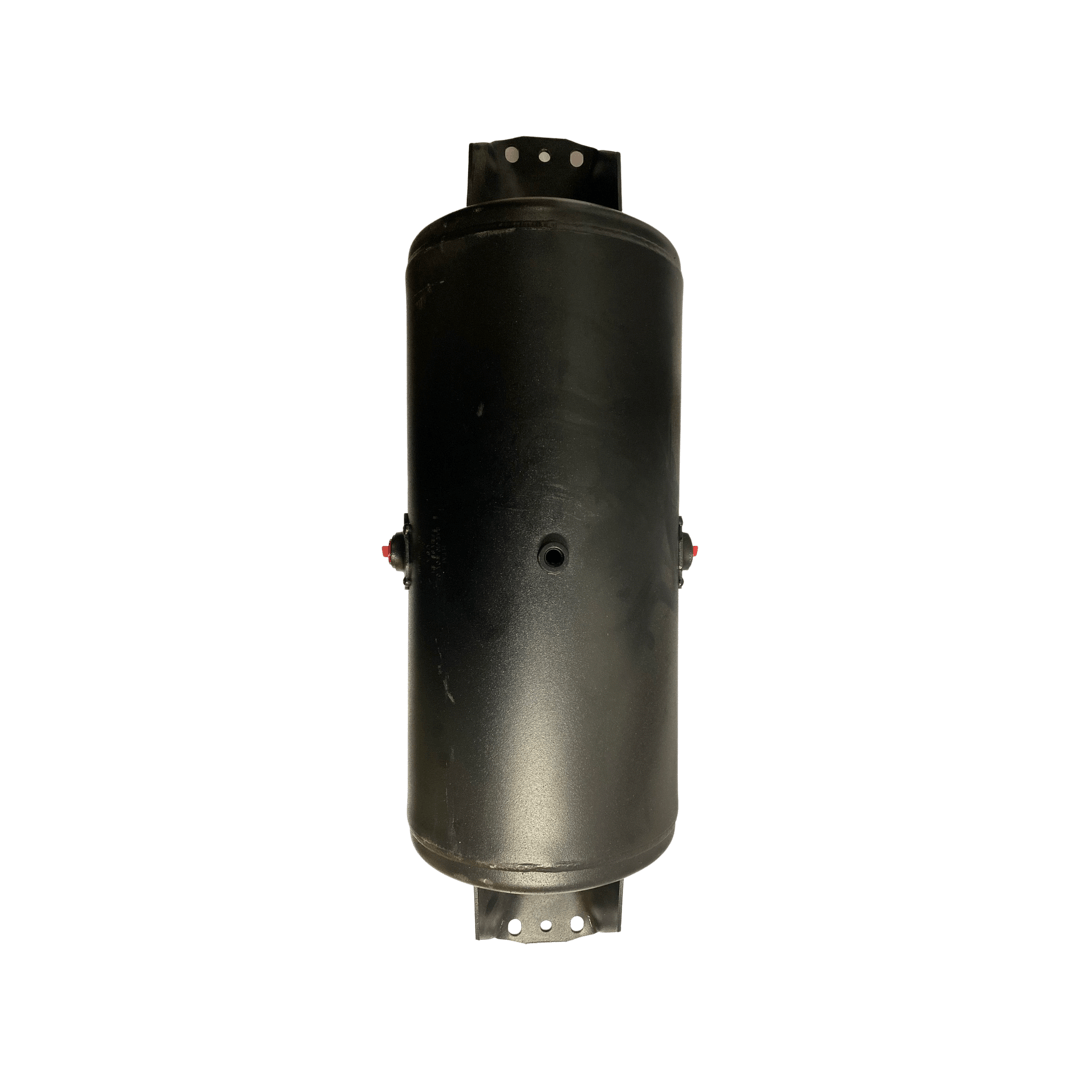

Air Tank 1488 Cubic in Vol 9.500in Dia
Volume: 1,488 Cubic Inches
Specifications
Attribute Value
Trailer / Truck Trailer
Diameter (In) 9.500″
Bracket Orientation Type 2
Front Port (F2) 1/2″ NPT
Back Port (B1) 1/2″ NPT
Drain Port (D) 1/4″ NPT
End Ports (E) (2) 1/2″ NPT
Specification
| Weight | 25 lbs |
|---|---|
| Dimensions | 30 × 12 × 12 in |
